Double head and double channel profile machining center

SD3550V7S-2-BT30

Technical specifications



Shenzhen Jingdiao CNC Equipment Co., Ltd
Address: Buildings 29, 30, and 31, Third Industrial Zone, Xitian Community, Gongming Street, Guangming District, Shenzhen

Telephone: 0755-29423909, 0755-29588251

Mobile phone: 13924586646 Mr. Zhou (same WeChat account)

Tiktok number: SDSK20211688

Email: sz_jdsk@163.com

Company website: www.cncjdj. com

Official website of Aluminum Profile Processing Center: www.szjdsk. cn

New Energy Vehicle Parts Network: www.sdskcnc. cn

1、 Machine Introduction:

1. The SD3550V7S-2-BT30 model series is a large-scale high-speed dual head dual channel profile machining center specially designed for customers; Equivalent to two machines using one set of CNC system and one set of bed; It can process two different workpieces simultaneously or process the same workpiece in segments with both ends simultaneously; The 2Y axis head can move forward and backward simultaneously or independently, the 2X axis head can move left and right simultaneously or independently, and the 2Z axis spindle can move up and down simultaneously or independently. When processing batch products, both ends can be used to process the products simultaneously, or the X1 axis can be moved to the left side of the machine to process long stroke workpieces separately using the X2 axis, achieving a dual-use function< Br/>
2. The sky track structure is easy and convenient to debug, and the motion mechanism is designed on the top of the crossbeam, which is lightweight, convenient, and easy to clean< Br/>
3. Especially suitable for precision engraving, milling, drilling, tapping and other processing of various types of steel, copper, aluminum, acrylic, plastic and other parts< Br/>
4. Additional functions such as fourth rotation axis, side milling head, and probe can be added< Br/>


&Nbsp& Nbsp& Nbsp& Nbsp& Nbsp;

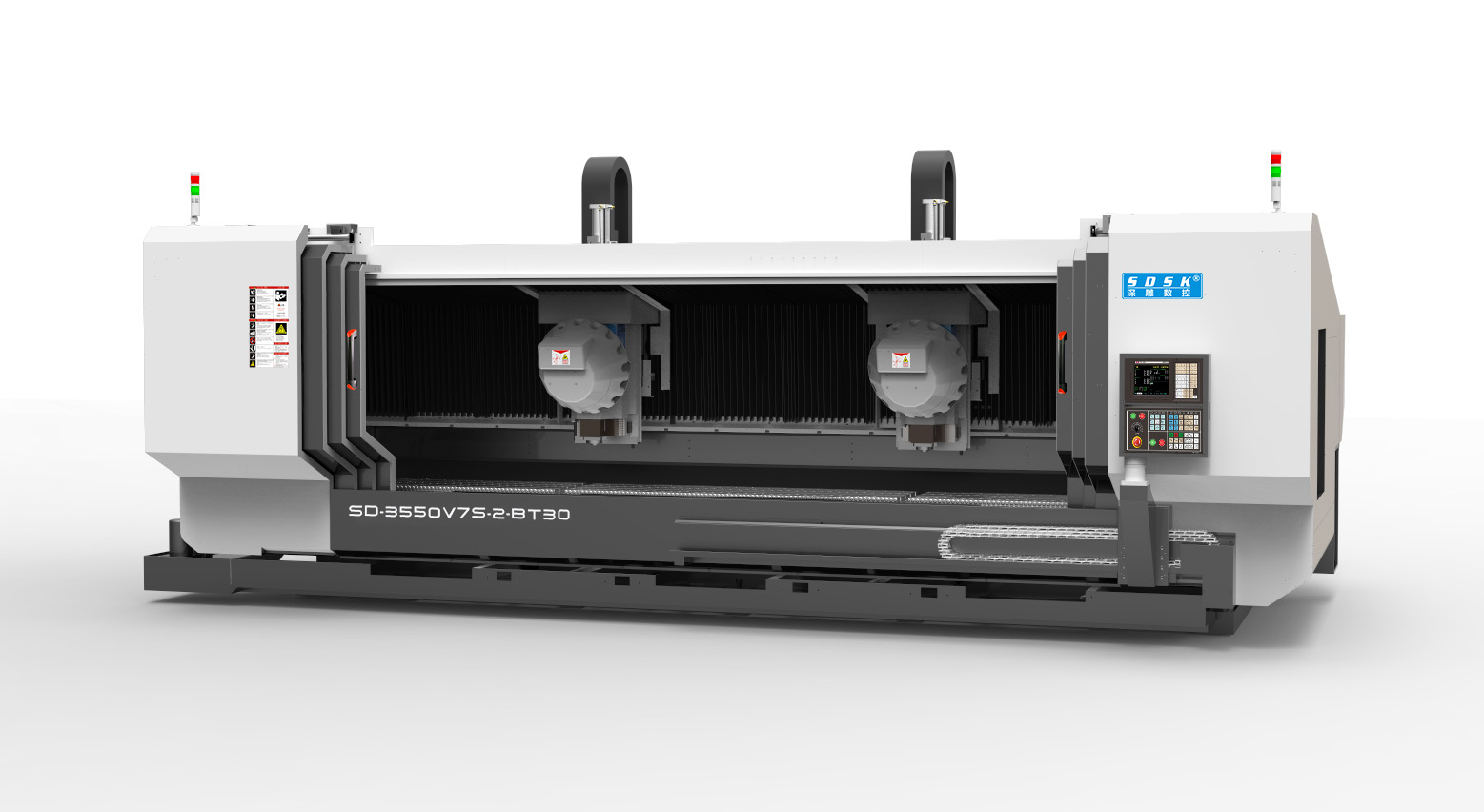

(The picture is for reference only, subject to the actual product)



2、 List of Main Machine Configuration (Unit: mm)
Regulations; Grid; Speak; bright
quantity
Origin
New generation CNC system (220MB-5)
full set
Taiwan
New generation 5.9-11KW spindle motor
Two
Taiwan
New generation servo motors 2X-AM35 (5.5KW) 2Y-AM28 (5.9KW), 2Z-AM11 (2.4KW), Z-belt suspension
